2025 Back Cove 39O

Her cockpit is a fun and relaxing space with transom gates to port and starboard, a U-shaped settee across from an aft-facing seat, and a central table for al fresco dining and entertaining. Expansive storage below the cockpit is easily accessed through a large actuated hatch, and provides generous accommodations for all of your water toys and gear.

The 39O offers a hard back for a fully enclosed helm deck; a unique design in this segment, which allows for climate-controlled comfort and an extended boating season with optimal protection from the elements. Her indoor social spaces keep everyone connected, featuring a galley up design and side-by-side captain and mate seats opposite a comfortable U-shaped settee. The result is a perfect space where the crew can enjoy a meal, or lounge while staying out of the sun or the rain.

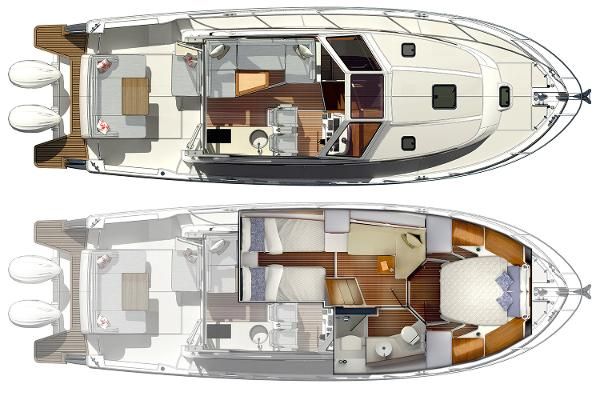

Below deck, owners and guests can relax in the privacy of a lower lounge and stream a favorite program to the Smart TV. The spacious owners’ cabin forward offers a queen-sized island berth and private access to the head and shower. For the crew, two single beds in the guest cabin are secluded, well proportioned, and comfortable.

She will have a 300 mile+ range at cruise, and a top-end speed of 37-knots with twin Yamaha 425hp outboards. Optional power installations, currently being finalized, will provide top-end speeds in the 40+ knot range. The 39O hull design will feature Back Cove’s proprietary Trailing Edge Lifting Surface (TRELIS) *D* for optimal handling and performance.

• Modified deep "V" planning hull with patented hull flat aft
• Back Cove white is iso-npg gelcoat w/ vinylester backup resin
• VIP Resin Infused Hull w/ PVC foam core bottom and topsides
• VIP Resin Infused foam core stringer system
• Awlgrip boot stripe
• Molded cove stripe depression w/ gold or silver "leaf" style stripe and Back Cove Heron

• Back Cove white gelcoat w/ graystone anti-skid on walking surfaces
• VIP Resin infused balsa core sandwich structure
• Mooring cleats forward, aft and midships (aft cleats are pull-up style)
• Stainless steel anchor roller weldment
• Anchor locker w/ ground tackle storage
• 12V electric anchor windlass w/ control at helm & foot switches on deck
• Ensign flagstaff aft
• Burgee staff on bow pulpit
• LED hard top mounted running lights (on edge of hardtop)
• LED hard top mounted stern light (on aft edge of hardtop)
• LED all-around anchor/nav light on hard top
• Teak accent stripe on cabin side
• Custom 1-1/4" 316L stainless steel perimeter rail
• Side deck SS under-mounted handrails on hard top (P&S)
• Compressed air horn on hard top
• (6) opening port lights w/ insect screens and shades
• Port & starboard molded steps leading to side and fore deck
• Aft facing cockpit seat on port side
• Large power lazarette (at forward end of power lazarette hatch)
• Aft settee seating with hinged teak cockpit seat back
• Port and starboard boarding gates
• Swim step w/ SS under-mount swim ladder
• Hot and cold cockpit shower
• Self-draining cockpit
• Swim step engine well hatch w/ drain
• Transom mounted grab rail in cockpit (P&S)
• Coaming grab rail in cockpit (P&S)
• Starboard side hawse pipe on coaming rail for shore power cord and shore water hose pass-thru

• 550 US gallon fuel tank w/ 1.5" deck fill; vented with overfill protection
• Evaporation emission carbon canister on gas fuel tank
• 26 US gallon diesel tank w/ 1.5" keyed deck fill
• Fuel/water separating filters
• Anti-siphon fuel feed valves for each engine

• Triple electronic controlled outboard engines (cool white)
• 7" engine display
• 3 blade, stainless Suzuki contra rotating propellers
• Binnacle mount triple engine control
• Electronic power steering
• HD trim tabs w/ dual actuators
• Sidepower bow thruster w/ joystick control (SE80)
• Hot and cold pressurized water
• 11 gallon water heater w/ pressure relief valve plumbed to thru-hull
• Bronze raw water strainer on generator and AC intake
• Marelon sea valves on underwater thru-hulls
• Air conditioning w/ reverse cycle heat 40kBTU (combined salon and cabin)
• Xintex-Fireboy automatic, clean agent fire extinguishing system in lazarette w/ manual back up
• Portable fire extinguishers in all accommodation spaces

• Three 54 amp engine alternators (one per engine)
• Onan 9kW genset with sound shield and water/exhaust separator
• AC/DC panel with polarity indicator and digital battery voltage meter
• 12Vdc system battery management switching
• 12Vdc breakers for electronics
• Emergency battery bank cross-over switch (ACR)
• 120Vac 50 amp shore power inlet w/ (2) 25' cords
• 120Vac shore power system ELCI protected
• Galvanic isolator
• All 120Vas outlets GFI protected
• (2) 4D AGM house battery (thruster and windlass)
• 80 Amp battery charger (house bank and start batteries)
• 20 Amp battery charger (bow battery bank)
• (4) 12Vdc automatic bilge pumps and (3) bilge high water alarms
• Bonding system w/ Zinc transom anode
• LED lighting in helm storage room and lazarette
• Cockpit courtesy lights switched at transom door and helm
• Overhead LED cabin and salon lights (w/ dimmer control)
• Overhead bi-color LED helm deck light w/ switch
• Salon and cabin courtesy lights
• 12Vdc USB outlets at Salon, helm and in cabin
• Battery powered salon and cabin smoke detectors
• Hard-wired CO detector in cabin and salon

• Head to starboard w/ separate shower stall
• Molded seat in shower stall with storage cubbie above seat
• Built-in vanity w/ sink and storage in head
• (2) Stainless steel opening ports w/ insect screen and shade
• Cherry framed mirror in head
• Full length mirror door to master SR
• Solid surface counter top
• single lever faucet
• Shower-drain sump pump system
• Fresh water electric MSD w/ holding tank
• Macerator for holding tank overboard discharge (as permitted)
• Holding tank pump-out fitting on deck
• Sealed overhead LED lighting (w/dimmer control)
• Powered exhaust fan in head
• Waste and fresh water level gauge (in head)
• Lewmar hatch w/ Dometic OceanAir Skyscreen

• 4-panel, locking salon door (double bi-fold and swing out main panel)
• Frameless glass direct bond windows
• (3) windshield wipers w/ fresh water wash and intermittent control
• (2) Lewmar sliding hatches w/ Dometic OceanAir Skyscreen
• Compass, illuminated
• 16" Stazo wood grain steering wheel
• Llebroc helm and mate's seat
• 3-step, fixed foot rest at helm seats
• "Teak and Holly" high pressure laminate sole w/ surface texture
• Large storage below helm sole, access by gas strut assisted hatch
• Dinette Back Cove high gloss inlaid table
• Flip-down 32" LED Smart TV in headliner cabinet
• Molded headliner with padded panel inserts
• SiriusXM ready Fusion Apollo stereo (w/ Bluetooth and NMEA 2k connectivity)
• 7.7 inch, 200 Watt Fusion speakers (flush mount)
• CAT5E cables run from TV's to helm storage room
• Remote HDMI outlets for each TV

• Electric, induction two burner cook-top
• Drawer style AC/DC fridge below mate's seat
• Drawer style AC/DC fridge below aft dinette seat
• Solid surface counter top
• Drawer and door storage below
• Garbage and recycling container pull out
• Silverware drawer pull out below stove
• Hafele tip-out tray at sink
• Large SS galley sink w/single lever faucet and drop in cover
• Under-counter convection microwave oven

• Varnished cherry interior on molded composite hull liner
• (2) Lewmar hatch w/ Dometic OceanAir Skyscreen
• (2) stainless steel opening port lights with screens
• Island double berth w/ drawer and storage below
• 8" polyurethane/latex mattress
• Locker above berth (P&S) with storage cubbies forward of lockers)
• Cedar lined hanging locker to port
• Multi-drawer bureau w/ dovetail drawers to starboard
• Cherry hull ceilings and headboard
• Reading lights on berth headboard
• 7.7 inch, 200 Watt Fusion speakers (flush mount)
• "Teak and holly" high pressure laminate sole w/surface texture
• Molded headliner with padded panel inserts
• 12Vdc USB outlets at forward berth lockers (P&S)

• Varnished cherry interior joinery on molded composite hull liner
• 32" LED Smart TV with sound bar on companionway bulkhead
• L-shaped settee to port with storage
• Cedar lined hanging locker to port with Himac counter below
• Pull-out drawer below hanging locker
• Storage locker in headliner above outboard berth
• Cherry hull ceilings and headboard
• Reading lights at guest berths and cabin settee
• (2) single berths with table between
• 6" upholstered cushions at guest berths
• Mattress platform bilge access hatches (under cushion)
• Lewmar hatch w/ Dometic OceanAir Skyscreen (1)
• "Teak and holly" high pressure laminate sole w/ surface texture
• Molded headliner with padded panel inserts
• 12Vdc USB outlets in guest stateroom tabletop (P&S)

• Mercury Verado 5.7L Triple Outboards V10/400hp w/Joystick & Skyhook
• Hull Gelcoat-Shark Gray
• Boot Stripe-White
• Cove Stripe & Heron-Silver
• Helm Chairs-
• Helm Deck Cushions-
• Lower Lounge Cushions-
• Cockpit Seating-
• Vitrifrigo DW70 Drawer Freezer in Storage Space Below Helm
• 22" LED 12Vdc TV in Master Stateroom (w/HD Digital Tuner) on Swing Arm
• Cabin Table at Lower Lounge Settee
• Dometic OceanAir Blinds on Salon Sliding Windows & Salon Door
• Zipwake Trim Control System
• Power Opening Center Window (Framed)
• Fresh Water Washdown in Cockpit & Anchor Locker
• Automatic Outboard Flushing System (Includes Shore Water Inlet & Cockpit & Remote Switch)
• Removeable Hardtop Mast w/Fixed Base Plate
• Hull Window in Guest Cabin
• MakeFast Manual Cockpit Shade
• Synthetic Teak on Swim Step
